Radium Engineering Port Injection Kit for the Ford Focus RS / ST

Regular price $360.95
Sale price $360.95 Regular price $379.95
Sorry, it's out of stock.

But we can let you know when it's back in.

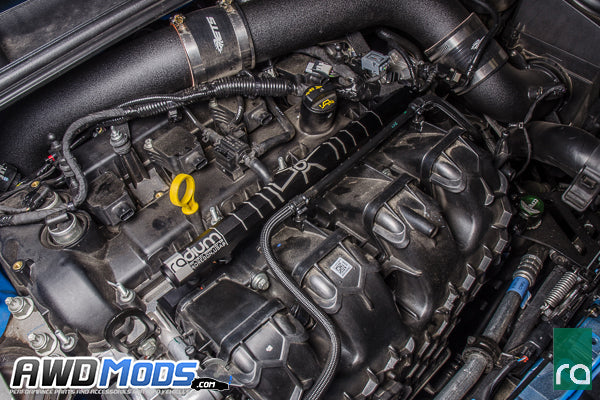

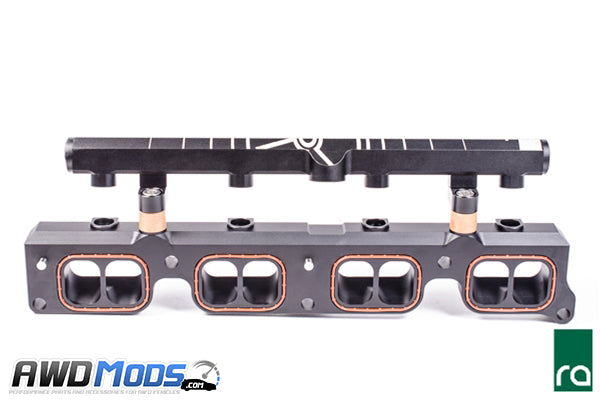

Ford Focus RS / ST Port Injection Kit by Radium Engineering Are you looking into adding additional fuel mixes to your Ford Focus RS or ST? Look no further, the Radium Engineering Port Injection Kit is compatible with all fuel types including popular alcohol mixtures such as E85. This kit installs between the intake manifold and the cylinder head and permits the use of port injectors to add additional fuel for high-horsepower applications for your Ford Eco Boost engine.

Radium Engineering Ford Focus RS / ST Port Injection Kit Features:

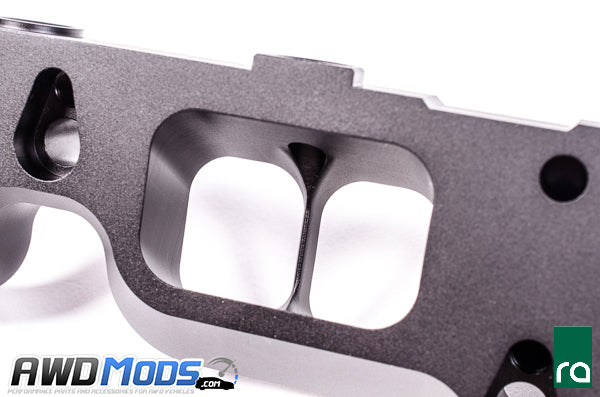

  • 6061 CNC machined aluminum adapter
  • features a smoothed port divider
  • promoting laminar flow into the combustion chambers.
  • The injector spray pattern is divided evenly into each runner

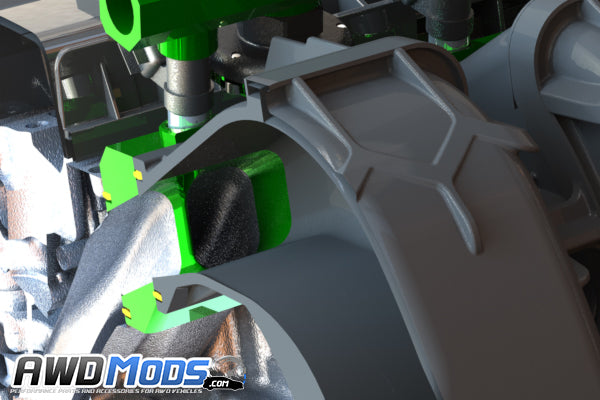

  • Angled air flow passages through the PIK adapter plate
  • are CAD matched to the intake ports and manifold
  • to minimize any impact to air flow through the ports

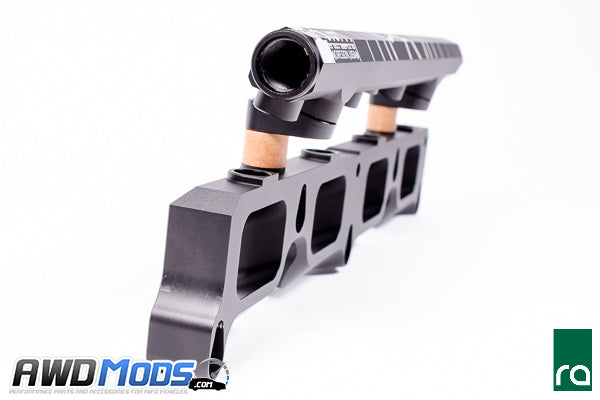

  • Fuel rail features a 0.69" internal diameter bore.

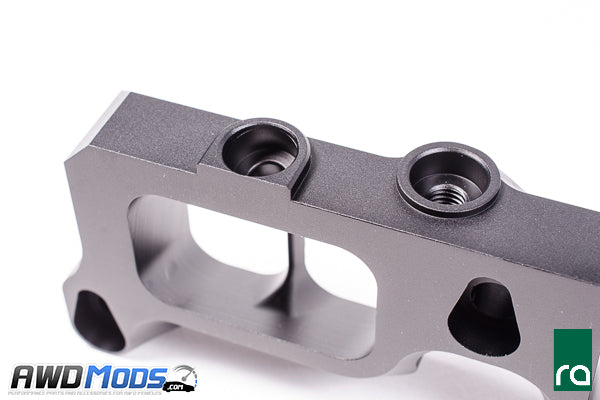

  • All 3 ports are machined with an 8AN ORB
  • (3/4-16 female) port
  • A CNC machine aluminum adapter bracket is included
  • to relocate the mounting grommets for the engine cover
  • Compatible Fuel Injectors that work with this Kit:
  • Injector Dynamics ID850-34-14-14
  • Injector Dynamics ID1050X-34-14-14
  • Injector Dynamics ID1300-34-14-14
  • Injector Dynamics ID1700-34-14-14
  • Injector Dynamics ID2000-34-14-14
  • Evolved Injection DPI550-38-14-14
  • Evolved Injection DPI650-38-14-14
  • Evolved Injection DPI850-38-14-14
  • Evolved Injection DPI1000-38-14-14
  • Evolved Injection DPI1200-38-14-14
  • Evolved Injection DPI1300-38-14-14
  • Evolved Injection DPI12200-38-14-14
  • RC Engineering SM2-0310
  • RC Engineering SM2-0370
  • RC Engineering SM2-0450
  • Deatschwerks 16U-00-0042-4
  • Deatschwerks 16U-00-0050-4
  • Deatschwerks 16U-00-0065-4
  • Deatschwerks 16U-00-0090-4
  • Deatschwerks 16U-00-1500-4
  • Deatschwerks 16U-00-2200-4

Specifications

Make

Ford

Model

Focus

Year

  • 2016
  • 2017
  • 2018

Trim

  • RS
  • ST

Part Number

20-0326

CA Compliance ⚠️ Not street legal in California.
